Accessory: Skirt Assembly for Wall-Mounted Angled Bi-Level Round Bowl Drinking Fountain
Model -SK8 Series is a stainless steel Cane detection Skirt, intended for use on angled extended arms where the anchoring cylinderical pedestal is 12 inches (305 mm) in diameter. The -SK8 is fabricated of 14 gauge type 304 stainless steel with exposed exterior surfaces polished to a #4 satin finish. The Skirt is optionally available powder coated. It is intended to meet or exceed accessibility requirements for protruding objects as indicated in ADA Standards for Accessible Design, ANSI Standards. The unit includes all mounting hardware.
- Stainless Steel Skirt, available Powder Coated
- Fabricated of 14 gauge Stainless Steel and Polished to a #4 Satin Finish
- #10-32 UNF VR Screws provided
- Designed for use with Bi-Level GRE24 Series Drinking Fountains or GYE24 Series Bottle Filler models
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Accessory: Skirt Assembly for Wall-Mounted Angled Bi-Level Drinking Fountains | 0 | 76 KB | ||
| | Stainless Steel Skirt Assembly – Bi-Level, Outdoor Drinking Fountains (e.g., GRE24 or GYE24) [A0004000-SK8 | All-Stainless Steel; A0005000-SK8 | Textured Fairway Green; A0006000-SK8 | Textured Firehouse Red; A0007000-SK8 | Textured Alpine Blue] | 0 | 128 KB | ||
| | Enviro-Glaze Color Chart Flyer (pdf) | 0 | 202 KB | ||
| | Murdock Outdoor Drinking Fountains, Bottle Fillers, Pet Fountains & Showers | 0 | 6 MB |
Specifications
| Accessibility | ADA Compliant |
| Material | Stainless Steel |
| Material Detail | Green, All-Stainless Steel, Red, Blue |
Models

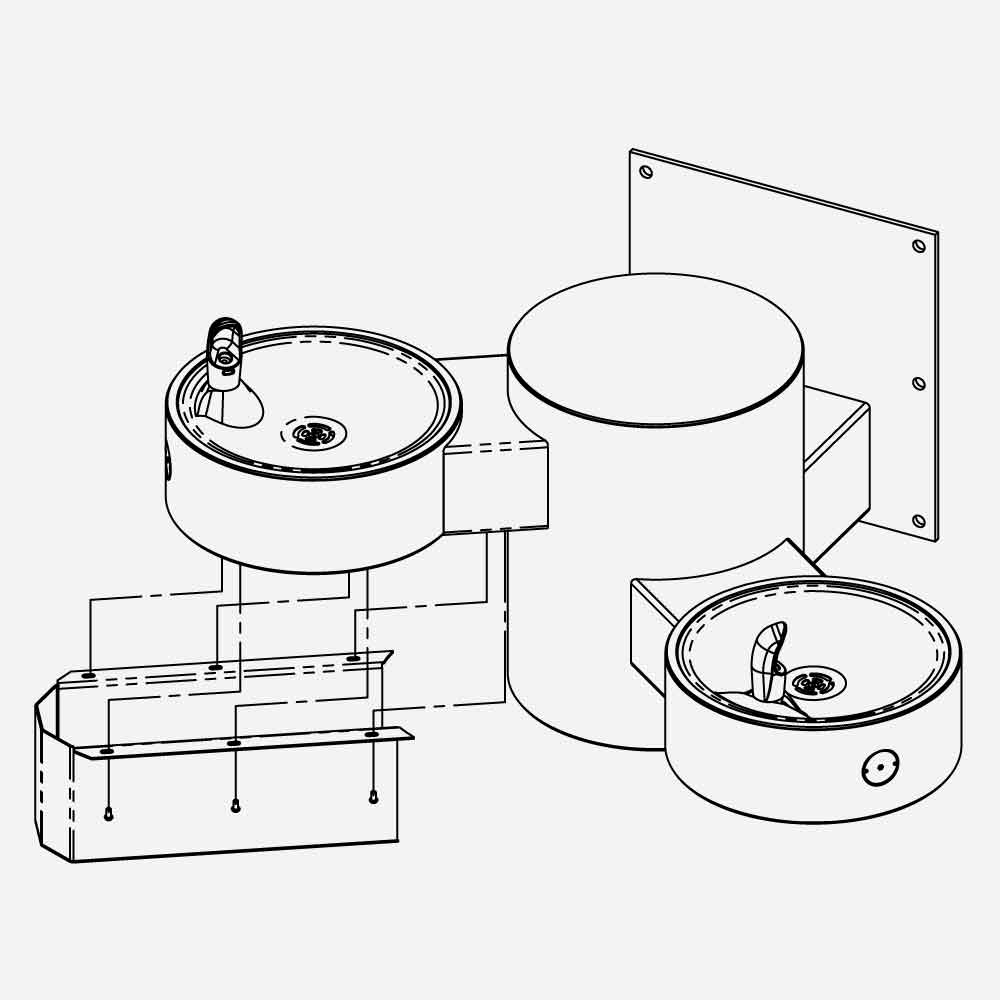

Typical models are shown below with their color configurations. The skirt measures 5-1/2" (140 mm) tall x 14-1/2" (368) front-to-back x 5" (127 mm) with 15/16" (23.8 mm) side mounting flanges. The back end is designed to fit the contour of GRE24 mounting cylinder and GYE24 bottle filler.
A0004000-SK8 All-Stainless Steel

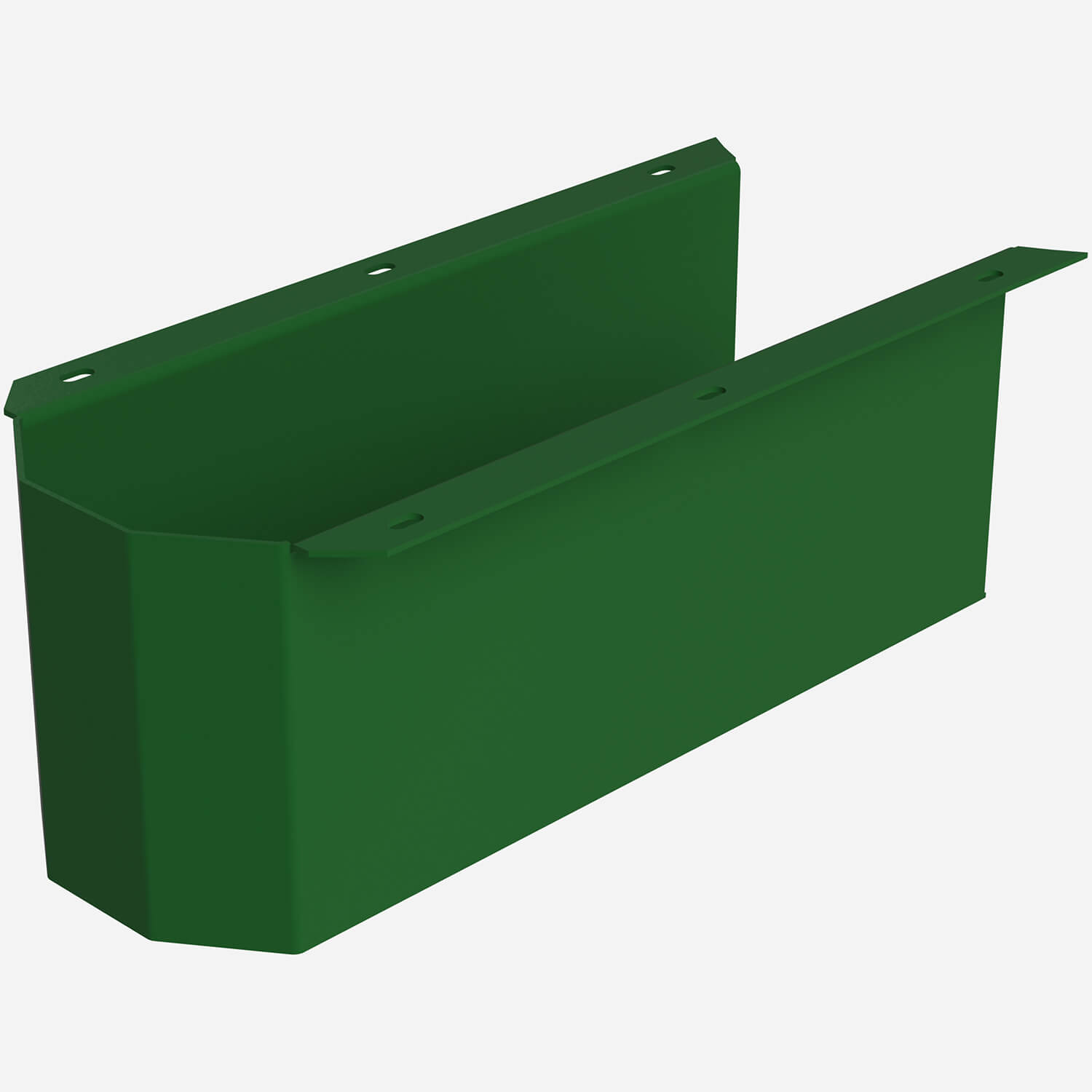

A0005000-SK8 Textured Fairway Green
A0006000-SK8 Textured Firehouse Red

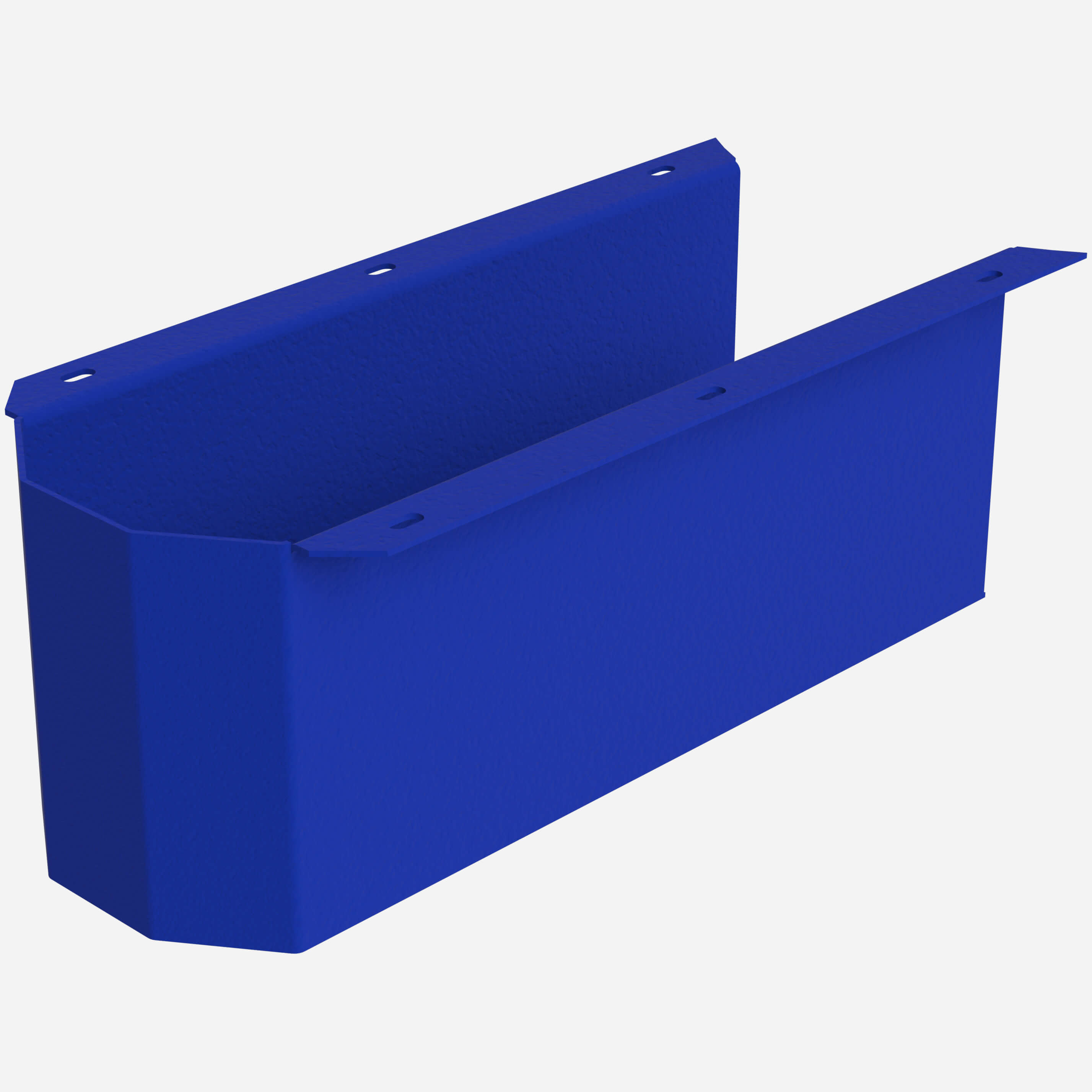

A0007000-SK8 Textured Alpine Blue
