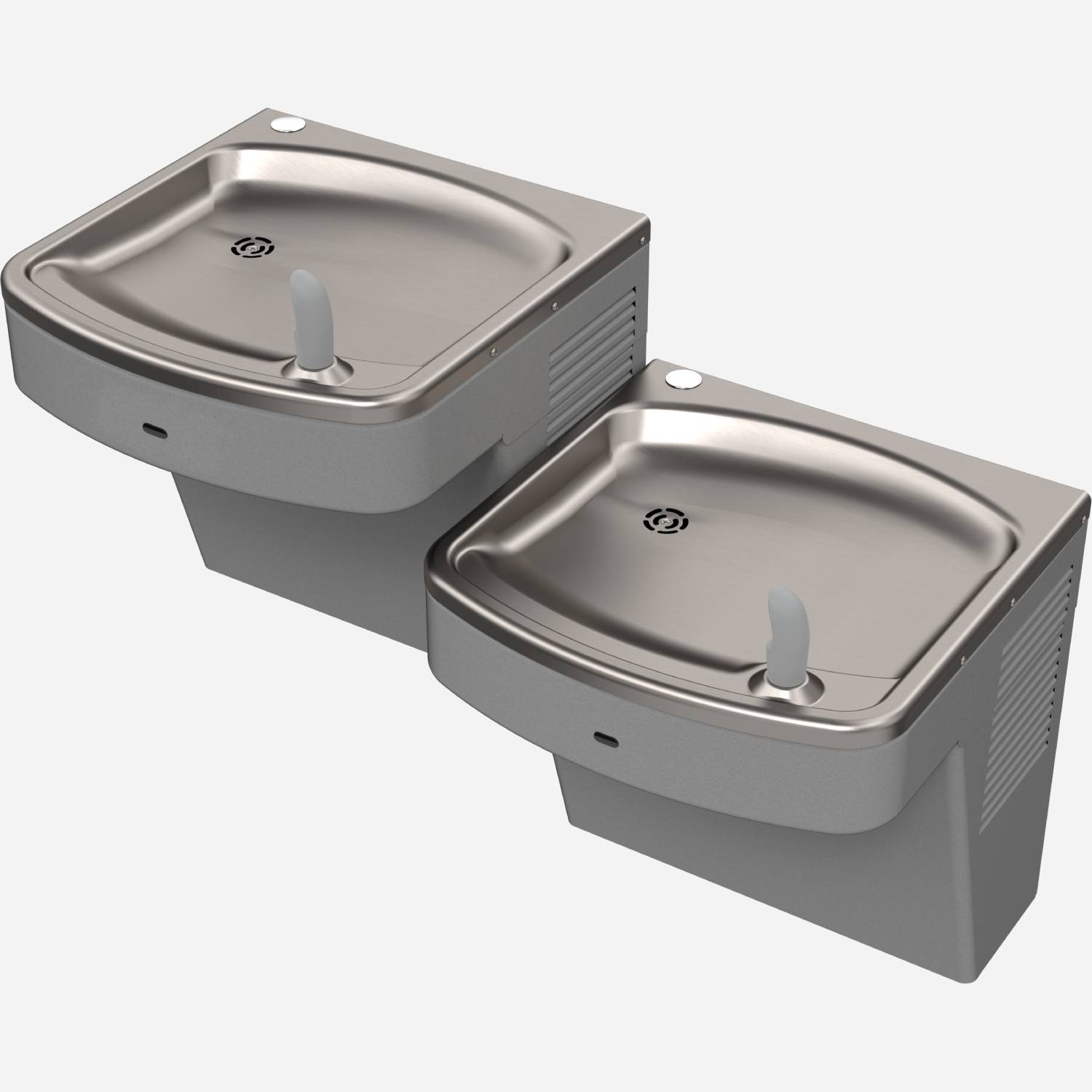

Wall-Mounted, Universal Bi-Level Drinking Fountain - Non-Refrigerated, ADA, Stainless Steel
Model A172-UG-SO Series is a self-contained, Bi-Level, Sensor Operated Drinking Fountain. A front-mounted 9 Volt Infrared Sensor shall activate units. Bubblers shall deliver 0.3 Gallon (1.14 Liter) per Minute flow, have a Flexible Guard with an integrally designed non-squirt feature, and operate on a 20-105 PSIG water pressure range. Basins shall be constructed from 304 Stainless Steel and have an Integral Drain. Cabinets shall be either Galvanized or Galvannealed Steel with Gray Powder Coat Finish or Stainless Steel with Satin Finish. Unit shall be certified to Public Law 111-380 (NO-LEAD) and NSF/ANSI/CAN 61. When mounted appropriately, the fixture meets ADA, ADA Standing Person, and ADA Child requirements.
Standard Features
- Rough-Ins Match Other Manufacturer’s for Easy Replacement
- Child or Adult ADA Compliant (When Properly Installed)
- Universal Bi-Level - Can Be Installed Left High or Right High with No Additional Parts Required
- Apron and One-Piece Bottom Wrapper is Satin Finish or Gray Powder Coat Finish
- Flexible, Low Flow, Anti-Rotation, Non-Squirt Bubbler
- 100-Mesh Inlet Strainer
- Hanging Bracket Provided
- 9-Volt Sensor Operation
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | ADA Universal Bi-Level Wall Mount Drink Fountain [Model A172-UG - Standard, A172-UG-SO Sensor Activated, A172-UG-VR with Vandal Resistant Push Button] - includes parts manuals | 0 | 2 MB | ||
| | ADA Universal Bi-Level Wall Mount Drink Fountain with Sensor Activation - No Refrigeration | 0 | 226 KB | ||
| | Murdock Care and Cleaning Guide - for Stainless Steel and Enviro-Glaze® Powder Coated Products | 0 | 95 KB | ||
 | | Murdock Mfg - Drinking Fountains | 0 | 164 KB | ||
| | Murdock Mfg - Drinking Fountains | 0 | 169 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Morris Group International Brands Flyer (pdf) | 0 | 718 KB | ||
| | Indoor Water Coolers, Bottle Fillers and Drinking Fountains Brochure (pdf) | 0 | 3 MB | ||
 | | Murdock® water fountains, bottle fillers, and hand washing stations are made from high-quality, durable stainless steel, one of the easiest materials to clean and disinfect. | 0 | 134 KB |
Specifications
| Mounting | Wall-Mounted |
| Material | Stainless Steel |
| Material Detail | All-Stainless Steel, Textured Grey |
| Compliances | IAPMO tested to NSF/ANSI 61, Section 9, UPC, Lead-Free Federal Law 111-380, CHSC 116875 - No Lead |
| Refrigeration | No Refrigeration |
| Product Features | Auto-Stop (Servicing Strainer Shuts Off Water Supply), Maintenance Advantage® – Easy Maintenance Design, Hands-Free Operation |
| Activation | Drinking fountain - sensor |
| Accessibility | ADA Compliant |
| Style | A17 Series |
| Patent | US 10,100,933 B2 (Auto-Stop Feature) |
| No. of Stations | 2 |
Options
Models
These are the basic models available for the A172-UG-SO Series non-refrigerated drinking fountain.

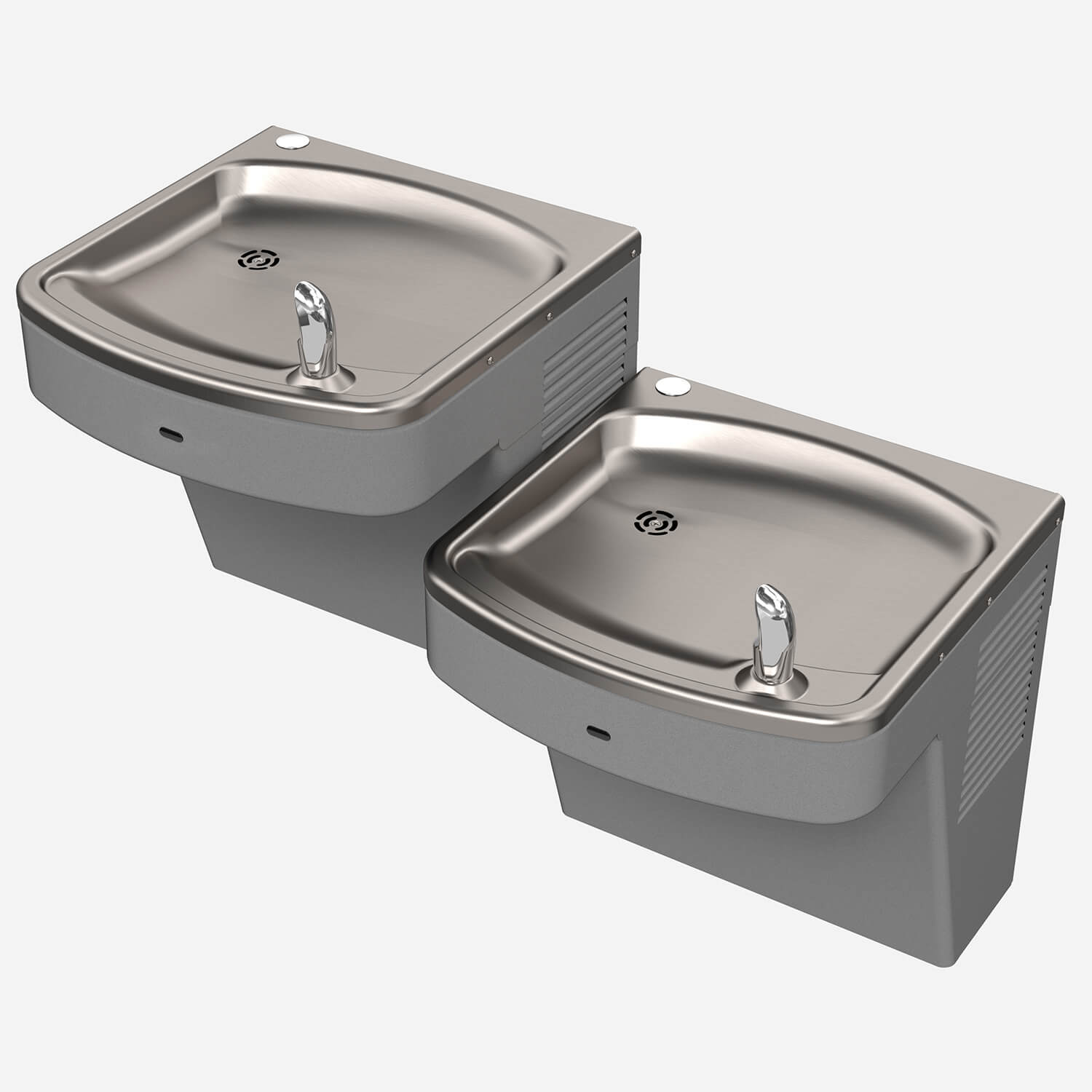

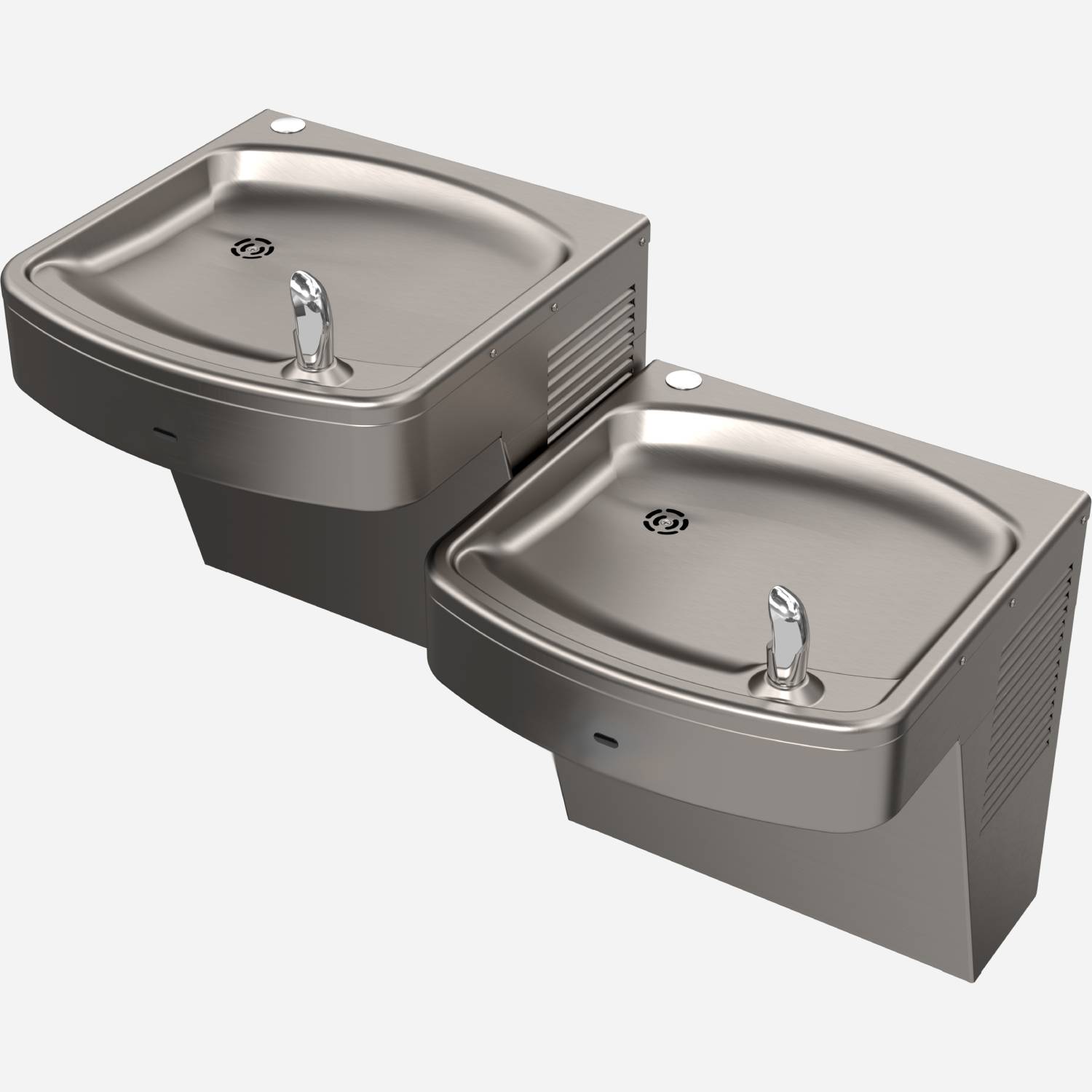

A172400S-UG-SO All-Stainless Steel Finish Stainless Steel Bubbler

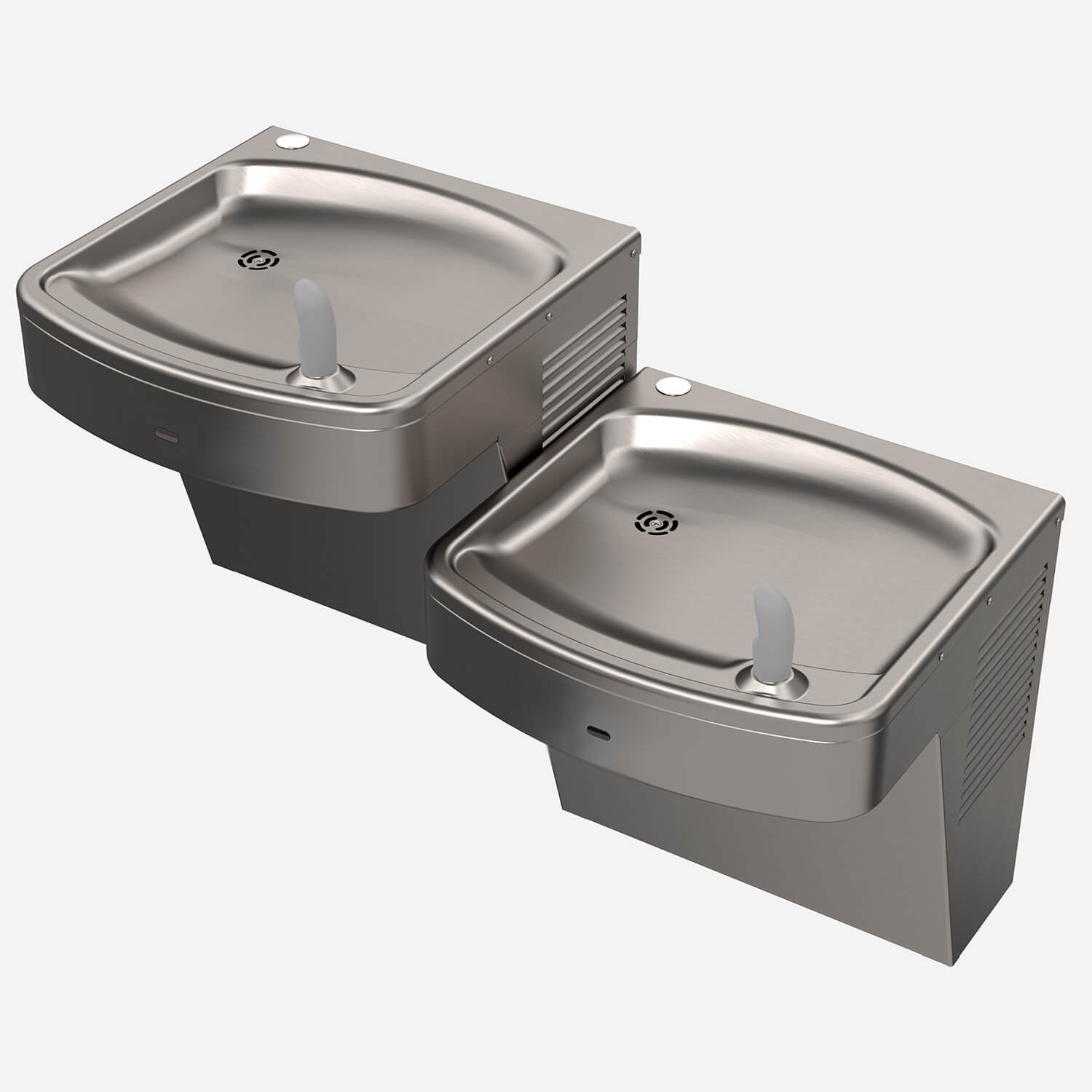

A172400F-UG-SO All-Stainless Steel Finish Flexible Bubbler
A172100S-UG-SO Textural Grey Finish Stainless Steel Bubbler
A171100F-UG-SO Textural Grey Finish Flexible Bubbler

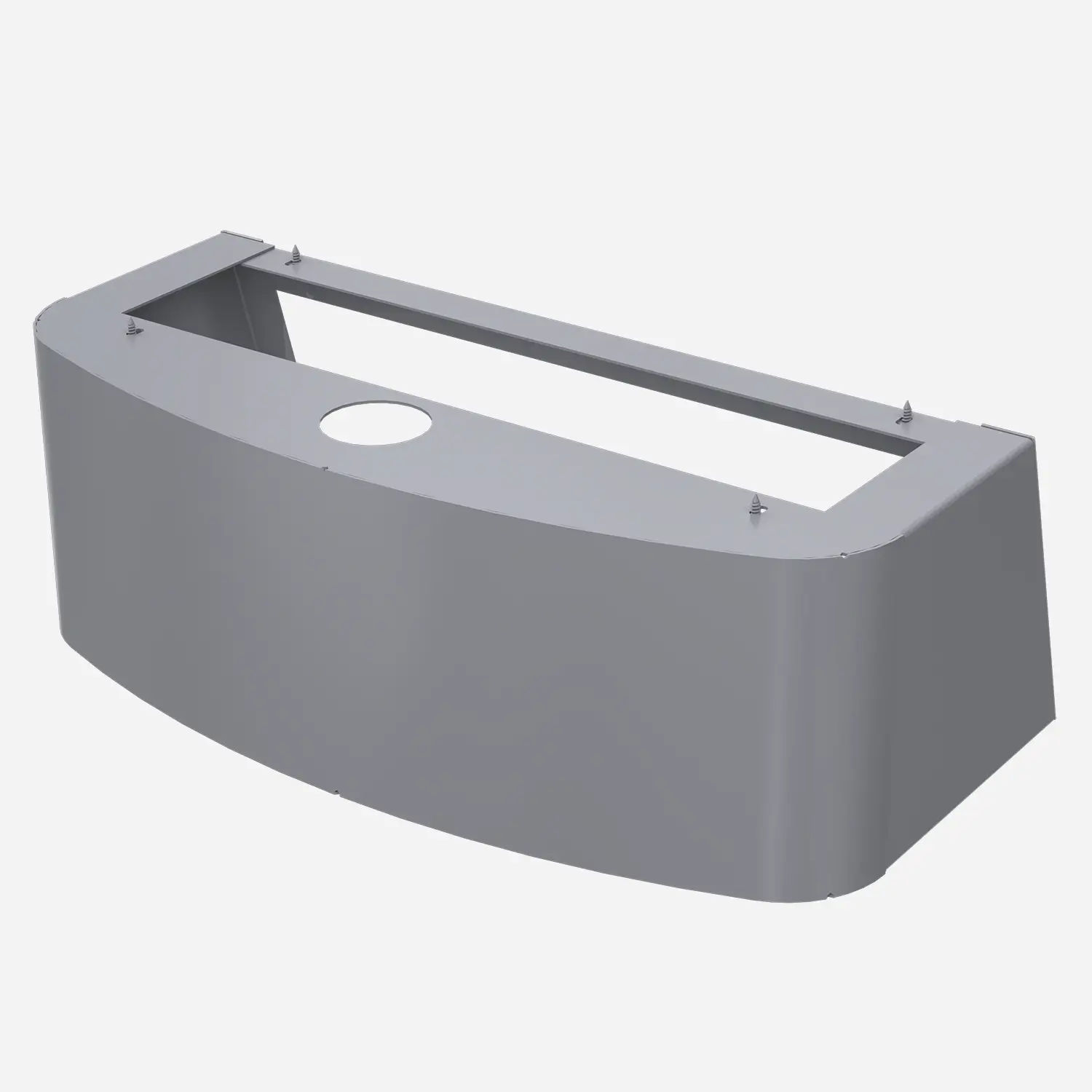

Popular Options-WF3000 | 3,000 Gallon PFAS Filter-SK5 | Cane Detection Skirt for Upper Unit Other options or accessories may be available see the submittal or options section below
